Stripping Force and Punch Buckling Length Calculation

Stripping Force and Punch Buckling Length Calculation

Stripping Force. The total friction force between the punch stripper (guide) plate and the punch is called the stripping force. The stripping force is taken as a percentage of the strip material thickness and the total forming force, using the constant (K) from the table below. Or, as a practical rule, the constant (K) is taken as between 1/40 and 1/5 of the total forming force.

  • Punch Buckling Length Calculation
    • Sample Application: Die Cutting Force, Stripping Force, and Buckling Length Calculation
      • SOLUTION
strip material cutting force k constant

We can find the stripping force using the formula below.
Ps = K . P (kg)
P = Lt . Td . T (kg)
Ps = K . Lt . Td . T (kg)
Ps = Stripping force (kg)
K = Percentage of the total forming force (from the table above), or taken as between 1/40 = 2.5% and 1/5 = 20% of the total forming force.

Punch Buckling Length Calculation

Small-diameter or small-cross-section punches used in piercing and blanking dies need to pierce or cut without buckling. For this, the maximum punch length is calculated. The calculation is done according to the “EULER” equation. The critical loading formula Euler’s equation applies to beams can also be applied to punches in the same way.

punch buckling calculation euler's equation beam loading configuration

The image above shows the beam loading configuration and Euler’s equation.

From the formula, the punch’s cutting force can be written as Pz = lz . Td . T, kg. One end of the punch is fixed (either pinned or rigidly fixed) to the punch plate, while the other end is supported by the guide plate. When we set the punch’s cutting force equal to “Euler’s” equation in figure a above, we can write the following formula.

Pz = Pkr is written.
Pz = lz . Td . T, kg

punch buckling formula

This gives us the equation.

blanking die punch buckling length calculation

E = Modulus of elasticity of the punch material, kg/mm2
L = Punch length, mm
I = Moment of inertia of the punch, mm4
lz = Cutting perimeter length of the piercing or blanking punch, mm
Pkr = Euler critical load, kg
π = 3.14

Since the punch material is made from hardenable steel materials, the modulus of elasticity can be taken as E = 20000 kg/mm2. The punch’s moment of inertia is calculated based on the punch’s cross-section.

punch beam cross-section strength and moment of inertia table

Some punch cross-section profiles and their moments of inertia are given in the table above.

Accordingly, for a round-section punch with a modulus of elasticity of E = 20000 kg/mm2, the buckling length is found with the formula below.

die punch buckling calculation

Sample Application: Die Cutting Force, Stripping Force, and Buckling Length Calculation

The washer shown, with the given dimensions, is to be mass-produced from 3 mm thick aluminum material using a piercing-and-blanking progressive die. (Td= 10kg/mm2) Accordingly;

sample application of blanking punch buckling length calculation
  1. Find the maximum cutting (forming) force.
  2. Given a safety factor of N = 1.5, find the safe forming force.
  3. Find the cutting work.
  4. Find the stripping force.
  5. Find the buckling length of the piercing punch.

SOLUTION

Maximum cutting (forming) force:
LT = π . (D+d)
LT= 3.14 (26+14) = 125.7 mm
P = LT . Td . T
P= 125.7 x 3 x 10 =3750 kg

Safe forming force:
Pem = P . N
Pem = 3750 x 1.5 = 5625 kg

WORK(die) = P( 1 — % P.D.R) T, kg.mm

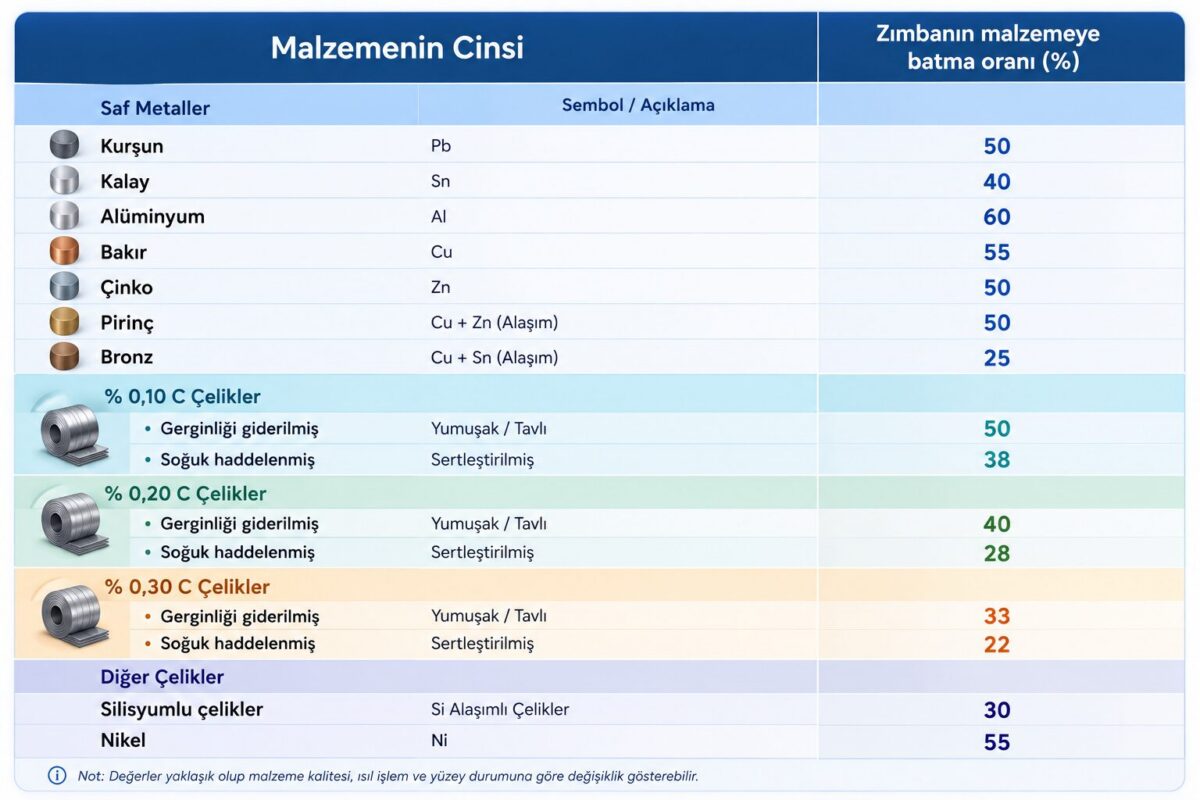

material type vs. punch penetration ratio table
Material type vs. punch penetration ratio table

From the punch penetration ratio table above, % P.D.R = 60%
WORK(die) = 5625 (1—0.60) . 3 , kg.mm
WORK(die) = 6750 kg.mm

Stripping force:
Ps = Pem x K or Ps= (2.5%— 20%) x Pem
Ps= 5625 x 0.20 = 1125 kg

Buckling length: from the formula

punch buckling calculation question formula

L= 531 mm is found.
