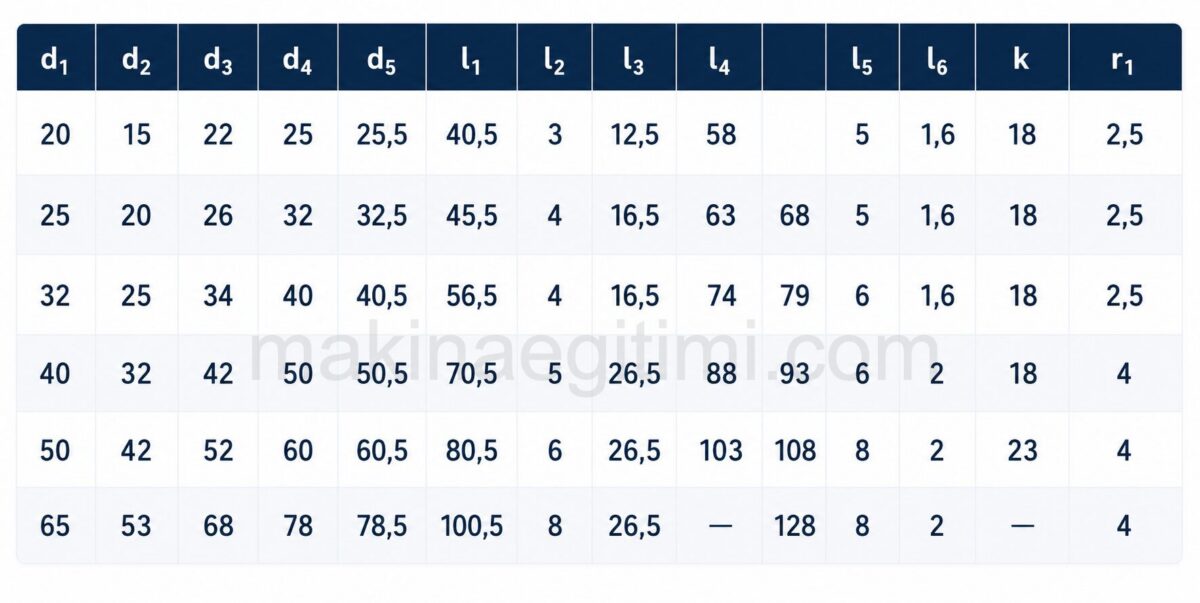

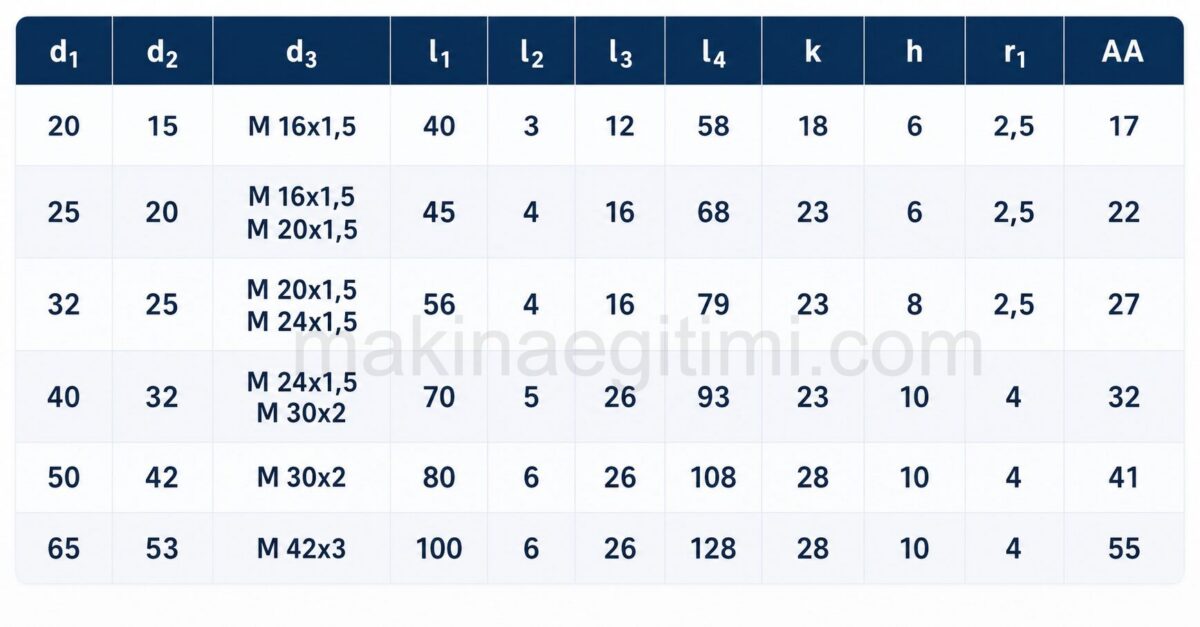

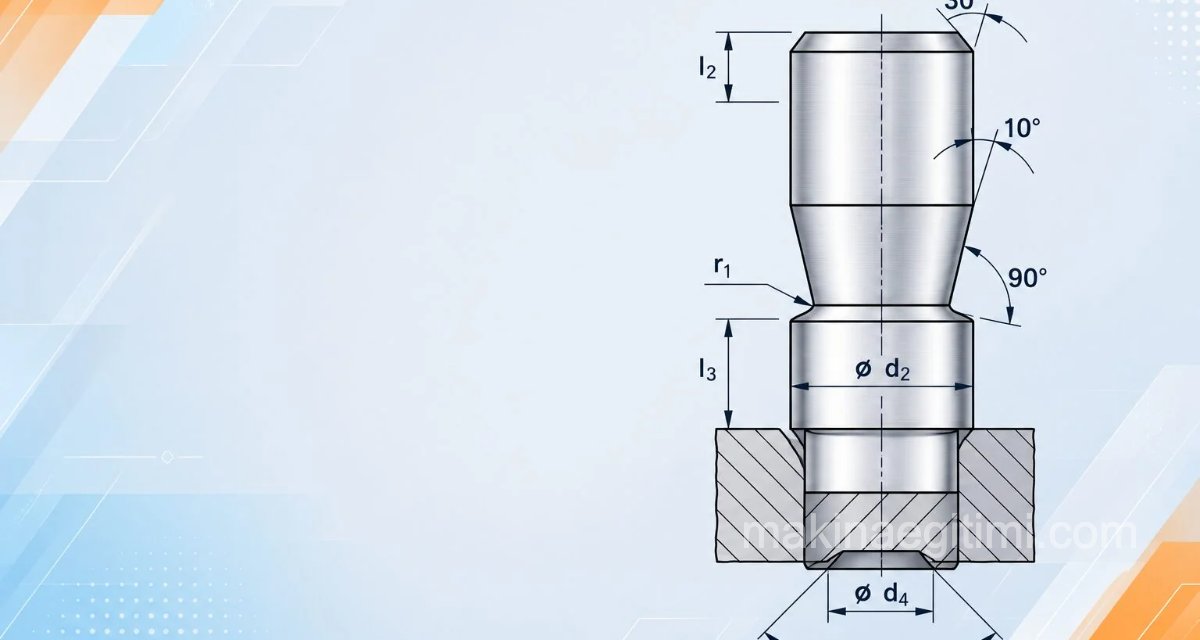

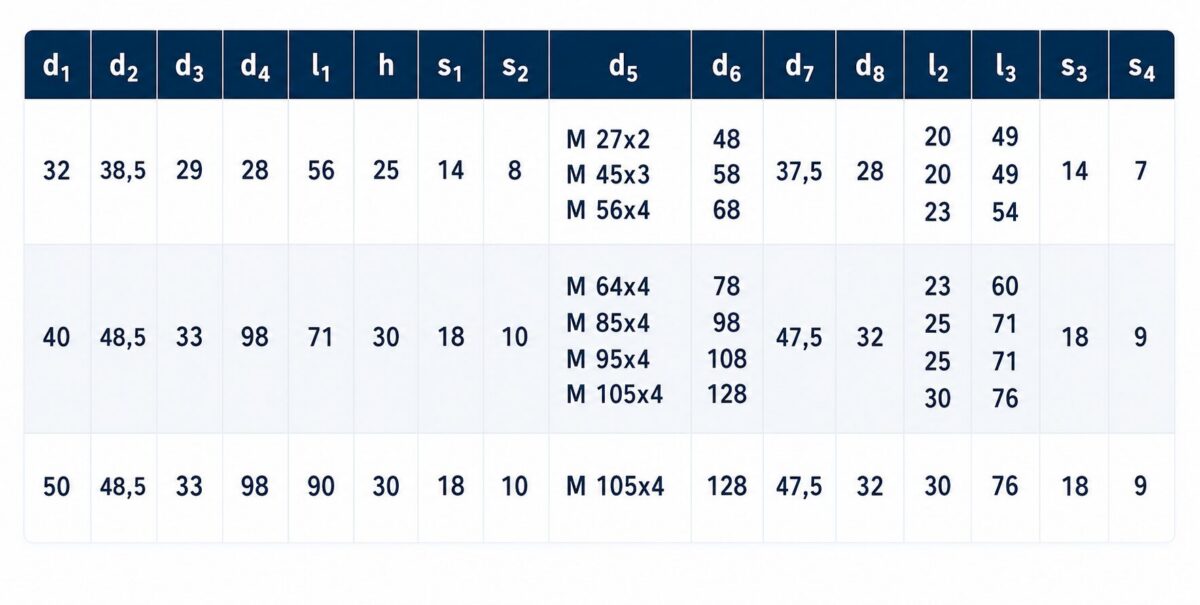

In this article, we’ll cover standard die shank drawings and dimensions per DIN 9859.
Small and medium-sized dies are mounted to the press using standard die shanks. Larger dies, on the other hand, are mounted directly to the press.
