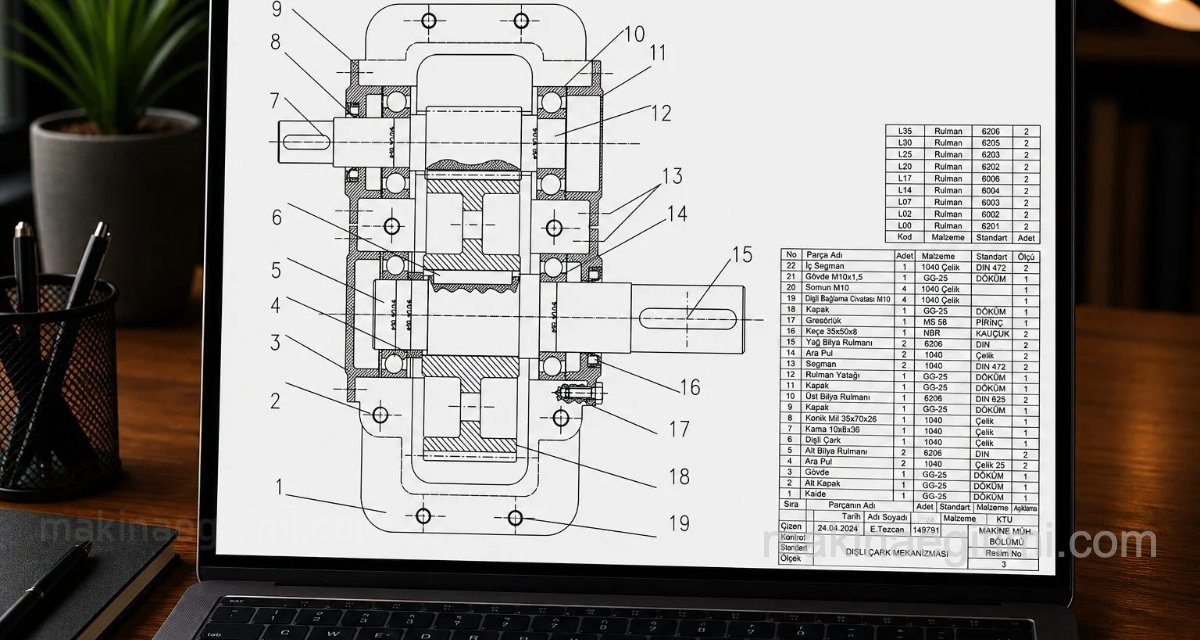

In this article, in our technical drawing examples section, we’ll provide the assembly and detail manufacturing drawings for a gear mechanism project. Besides the jpg versions of these drawings, you can also download the .DWG file for the AutoCAD drawing.
Mechanical Engineering project work — detail drawings for a gear mechanism. Covers, pinion gear, gear shaft, gear wheel, and collar.
Assembly Drawing PDF // DETAIL 1 PDF // DETAIL 2 PDF // AutoCAD DWG
