In the Technical Tables section of Makine Eğitimi, this article shares standard thread tables — Metric and Whitworth thread tables.
Metric Thread Tables
Tables usable in the machinery sector — in tool & die making, lathe/fitting work, CNC machines, and CAD-based mechanical technical drawing — in manufacturing and planning, at various stages of education in vocational and technical high schools, in workshop practice, and in manufacturing process courses.

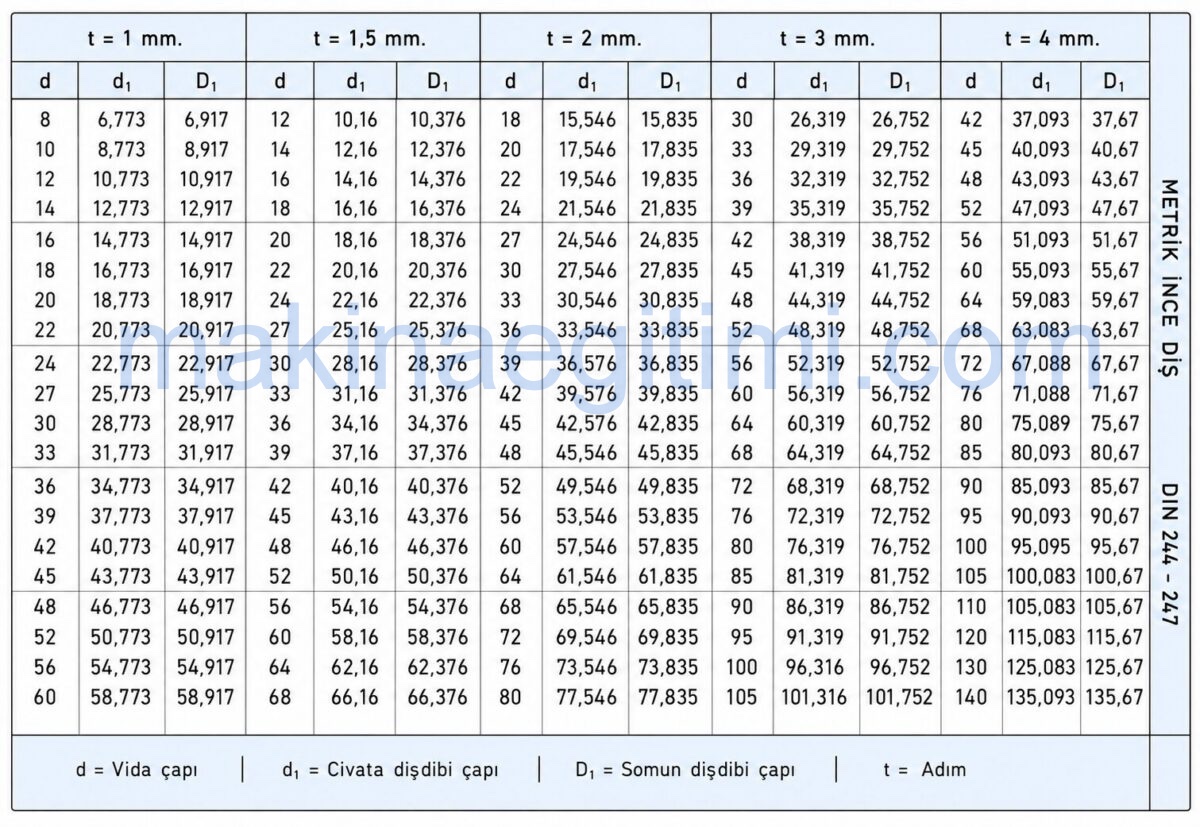

Thread Designation Abbreviations and Metric Fine Thread Table

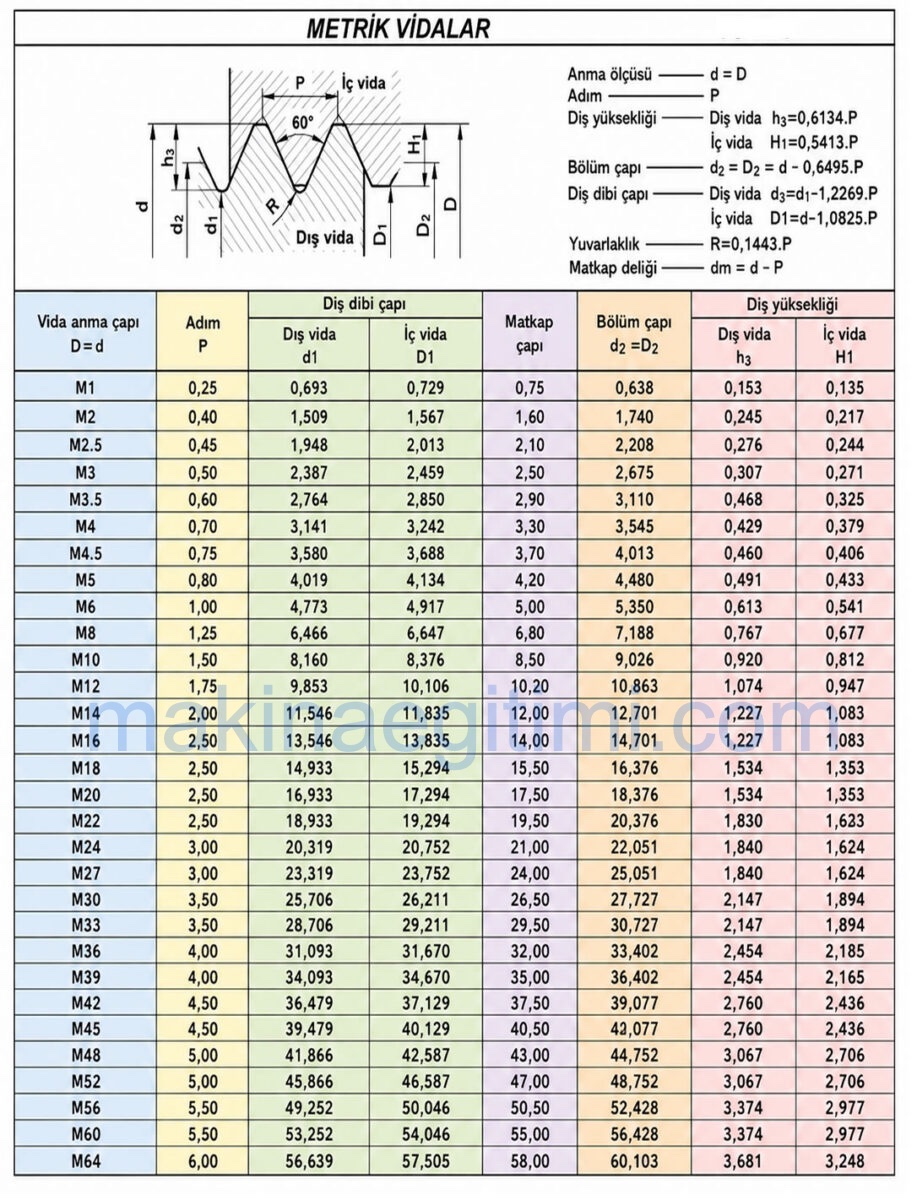

Metric Coarse Thread and Nominal Diameter / Drill Diameter Tables
Buttress Thread and Trapezoidal (ACME-Style) Thread Tables

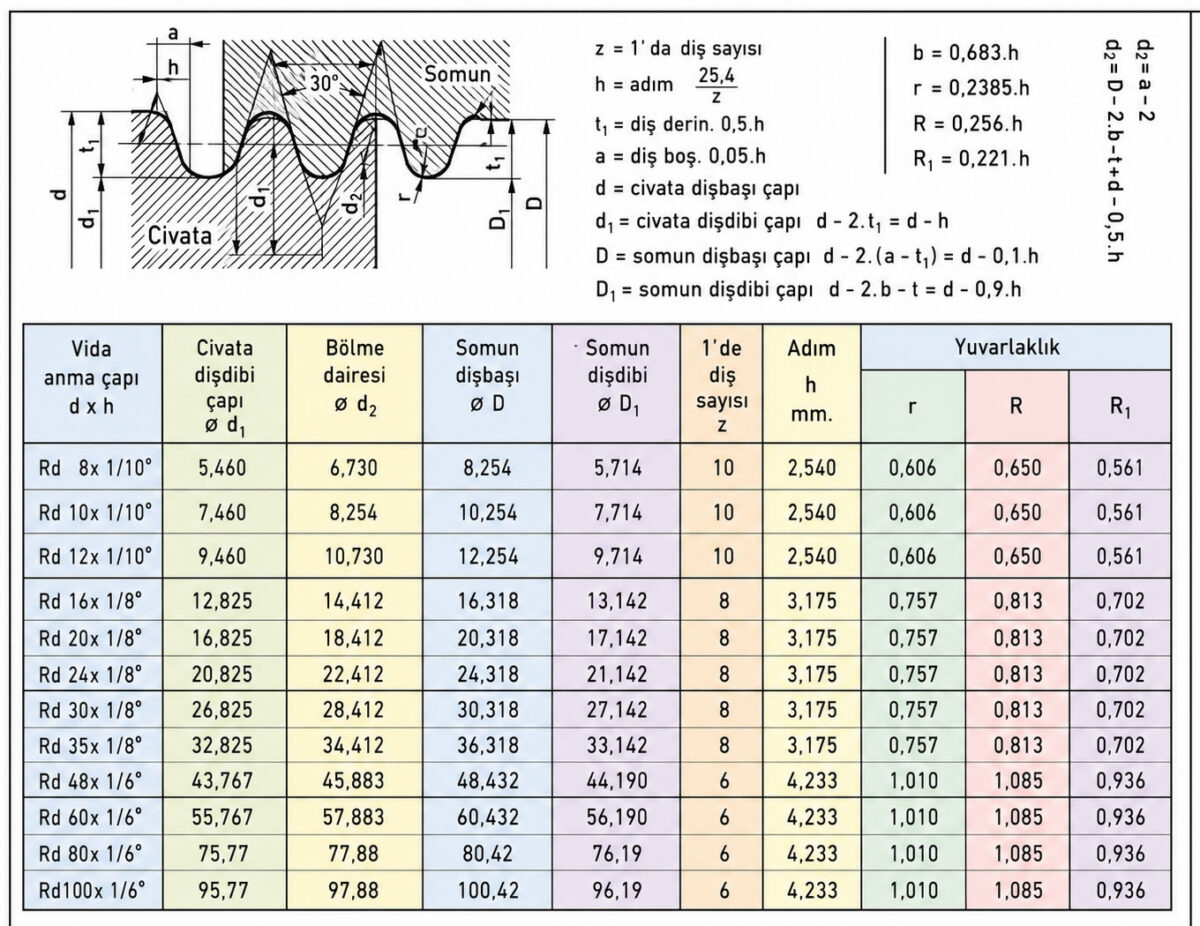

Round Thread Table
Whitworth Thread Tables (BSW)

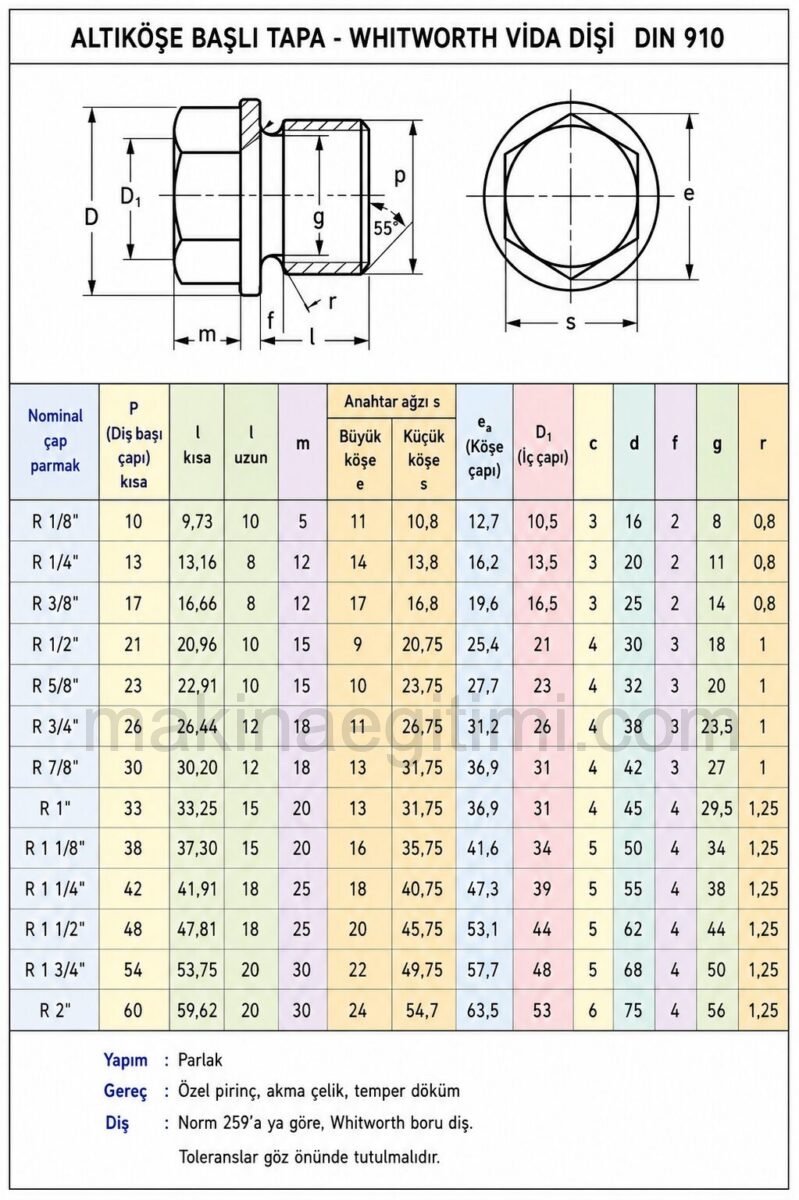

Whitworth Pipe Thread and Hex-Head Plug Thread Tables

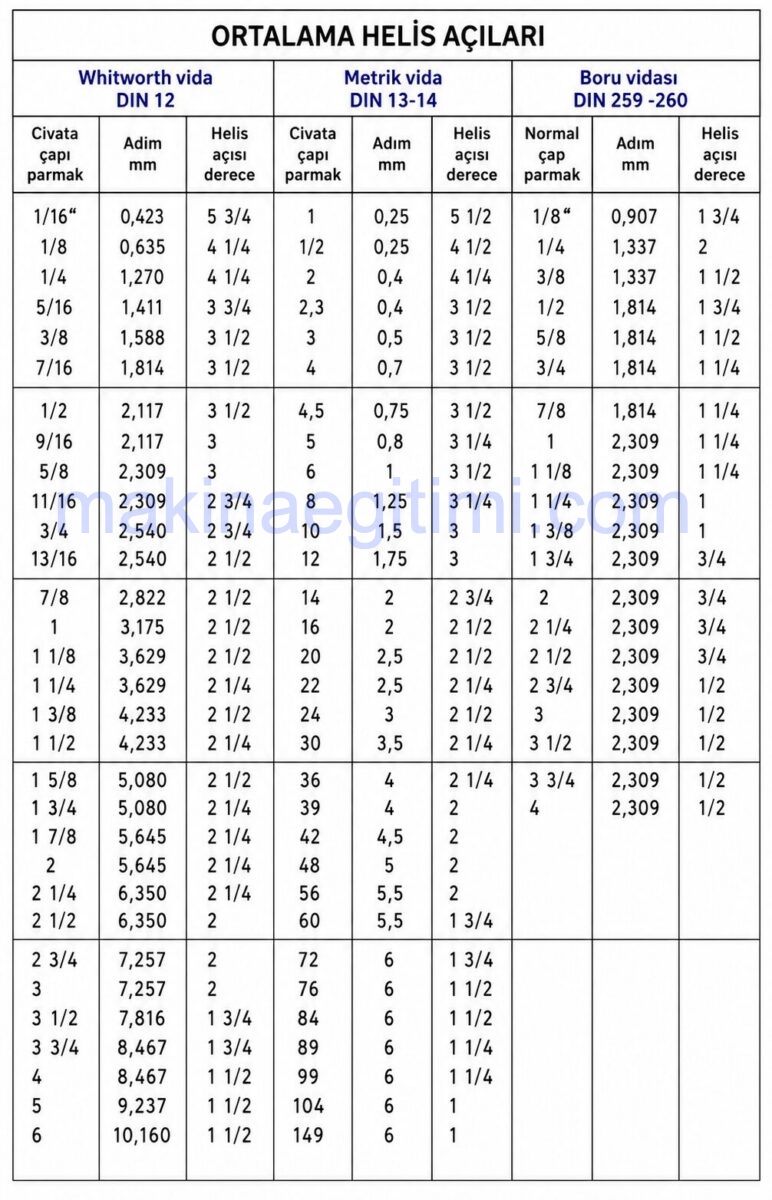

Average Helix Angle and Tap Drill Size Tables
